| Generator Type | Single Genset Power Range | Optional Devices |
| Natural Gas Generator Set | 10KW~1000KW |
01. Silent Canopy 02. Silent Container Outdoor Use 03. ATS 04. Heat Recovery Device/Cogeneration 05. Synchronous System 06. Mobile Trailer 07. Engine Oil Auto Feeding System 08. CO/CH4Dector 09. Biogas Scrubber & Desulfurizer 10. Blower with Frequency Converter |
| Biogas Generator Set | 10KW~1000KW | |
| LPG Gas Generator Set | 10KW~500KW | |
| Biomass Generator Set | 10KW~500KW | |
| Syngas Genertor Set | 10KW~500KW | |
1) 10500V, 6300V, 400V high, medium and low voltage output can be customized according to the need, lower initial investment and operating costs, can both parallel operation and use directly with the load, to meet the different needs of users.
2) Having advantages such as large diameter, long stroke, low speed and big power reserve, more suitable for low pressure gas than high speed machine, power output is stable and constant.
3) Low speed greatly reduces gas engine components wear, extends the service life span, and reduces the components inventory.
4) Inline structure simplified engine layout and convenient for maintenance.
5) natural gas naturally aspirated gas intake system, no turbocharger, intercooler and other equipment, adapting to a wide range of gas, low failure rate, have obvious advantages.
6) The inner mixing gas generator with heat exchanger set, realizing gas and air intake separately and co-combustion in the combustion chamber, can be adapted to safety use of high hydrogen gas, no tempering and blasting danger.
7) Intake system is configured with emergency shut-off valve, flame arresters, valves, and other explosion protection facilities, alarm protection measures are taken to ensure the safe operation of the unit.

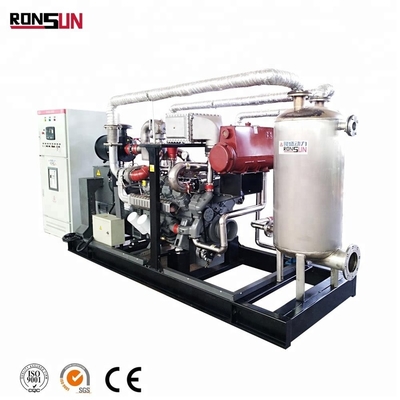

Note: Picture only for reference, please make the object as the standard
|
MAIN TECHNICAL PARAMETERS (250kw biogas generator) for more information please contact +8618678013992 |
|||||
| Generator Main Parameter | 380V/400V/415V AC Alternator | ||||
| Model No. | LS-250GFT | Alternator Brand | Leroy Somer | ||
| Output power | 250kw / 312.5kva | Alternator Model | TAL-A46-G | ||
| Rated voltage | 380V/400V/415V | Rated Output Power | 250kw/312.5kva | ||
| Phase arrangement | 3P4W | Rated Speed | 1500rpm/1800rpm | ||
| Rated frequency | 50hz/60hz | Rated Frequency | 50hz/60hz | ||
| Power factor | 0.8 | Alternator Efficiency | 95% | ||
| Ignition type | eoectronic controlled single cylinder idepent high energy ignition | Voltage Regulation | ±0.5% | ||
| Fuel control method | Lean burn, closed-loop control | Isulation Class | H | ||
| Speed regulation | electronic speed regulation | Alternator Type |
Parallel onto Grid (Synchronous) |
||
| Protect grade | IP23 | Excitation Method | AREP or PMG | ||
| Generator Size | 3050*1500*1750mm | Rated Ambient Temp | 40 ℃ | ||
| Weight | 3150kg | Stator Rated temp rises | 125℃ | ||
| Power and Efficiency | Engine Main Parameter | ||||
| Voltage Range @50hz | 380V/220V | 400V/230V | 415V/240V | Engine Brand | VMAN |
| Current Range @50hz | 474.8A | 451.1A | 434.7A | Engine Model | LS280-146TG |
| Votage Range @60hz | 380V/220V | 416V/230V | 440V/240V | Engine Type | 8 Cylinders, V shape |
| Current Range @60hz | 474.8A | 433.7A | 410.1A | Bore*Stroke | 128*142mm |
| Electrical Efficiency | 37.9% | 37.9% | 37.9% | Displacement | 14.6L |
|
Gas Consumpition @100% load |
149.5Nm3/h | 149.5Nm3/h | 149.5Nm3/h | Starting Method | Electrical Starting |
| Cooling System | Lubrication System | ||||
| Coolant Filling(L) | 60L | Max. Amount of Engine Oil | 57L | ||
| Thermostat Start Temperature | 71~83℃ | Min. Amount of Engine Oil | 19L | ||
| Cooler Type | Vertical Intercooler | Engine Oil Pressure at Idel Speed | 230kPa | ||
| Air Volume | 3250m3/h | Max. Engine Oil Consumption | 0.3kg/h | ||
| Generator Requirements | Emmisions | ||||
| Ambient Temperature | 20~50℃ | Exhaust Temperature | 490℃ | ||
| Gas Supply Temperature | 10~40℃ | Max. Exhaust Back Pressure | 35mbar | ||
| Gas Intake Pressure | 5~80kPa | Max. Allowable Back Pressure | 40mbar | ||
| Gas CH4Content | ≥50% | Exhaust Flow | 2665kg/h | ||
| Gas Moisture Content | ≤40g/Nm3 | NOX Content | ≤500mg/Nm3 | ||
| Gas H2S Content | ≤20mg/Nm3 | CO Content | ≤500mg/Nm3 | ||
| Impurity Content | ≤30mg/Nm3 | SO2Content | ≤20mg/Nm3 | ||
| 500kw Gas Generator Set | 400kw Gas Generator Set | 500kw Gas Generator Set |
| 100kw Gas Generator Set (Heat exchanger) | 250kw Gas Generator Set (Heat exchanger) | 250kw Gas Generator Set |
With a history stretching back more than 20 years, Ronsun Power Generation is a leader in the design and manufacture of power generation equipment, including Gasifier and natural gas Pretreatment systems in Shandong Province. Ronsun Power Generation has unique expertise in that all aspects of generator set design, manufacture and service have been brought together in one company.
All the major components - the engine, alternator and control systems - are chosen with the world famous brands. We're proud of our reputation as a socially responsible company, We create value for our customers and distributors by providing competitive and dependable industrial&household power solutions.
Our product range from 12.5- 1250 kva, includes gas generator sets and diesel generator sets, open and enclosed generator sets providing prime and standby power - from standby domestic use, right up to power modules with the ability to operate as complete power stations supplying electricity to national grids.
The Ronsun Power regards the quality of the products as the most important thing. The quality of Ronsun's products and service have met the requirement of clients at home and abroad. Ronsun has many biomass generator running in food service, animal husbandry, aquaculture and oil interests industries. And its products are exporeted to Australia, Italy, Czech, Slovenia, France and dozens of countries in Southest Asia, South America and Africa.
As For more challenging power needs, Our Power Solution Department is dedicated to providing bespoke solutions to meet your specific requirements, timeliness and budget, regardless of complexity.
Packed with wrapped film as standard,plywooden case for options.When we finished the test of gas generator,our transporation department then will take charge of sending the generator to the container at port of loading,with help of our excellent forwarder, we will send our generators to our customers successfully without any damage.
FAQ
Q-1 What is the overhaul time of the gas generator set?
A: Overhaul time of the gas generator set is 20000 running hours.
Q-2 Is there any instructions on the installation of the generator set?
A: We will send our engineer to your side to guide the installation work and train your people on the operation.
Q-3 Do you have gas generator sets in stock?
A: We have some basic gas generator sets in stock, due to the sales promotion, we need to check before confirming the order.
Q-4 What kind of payment terms can I use when transferring the deposit?
A: T/T, L/C at sight, West Union, Paypal etc.
Q-5 Is it easy to buy spare parts abroad?
A: The spare parts is easy to be found abroad, and if you can not find by your country, we will send from our company within 3~5 days.
Q-6 What is the standard of the emission of your generator?
A: The emission of our generator can reach the world's emission standard
Q-7 What is the gas consumption of your gas generator?
A: Our gas generator consumes 0.6m3 biogas, 0.3m3 natural gas, 0.28kg LPG Gas and 2.5m3 syngas per KWh
Q-8 Is there any optional devices that can be add to the gas generator?
A: Yes, there are some, optional devices include, silent canopy, container, ATS, CHP, Trailer, Synchronous System.
